Vertical balers

Product family
HSM V-Press 605

Weight
57 kN
Weight
max: 70 kg
Voltage / Frequency
blocks.contact_search.dropdown_alt
  • 400 V / 50 Hz
  • 230 V / 50 Hz

Scroll to the desired section:

Technical data Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

The space-saving vertical baling press with a wide-opening double door reliably and economically reduces the volume of cardboard, die-cut waste, paper or film. The pressing process starts immediately after closing the door. Bale ejection is automatic.

High-performance product variant for three-phase connection

  • The powerful system is designed as Plug&Press and can be put into operation immediately at the installation site

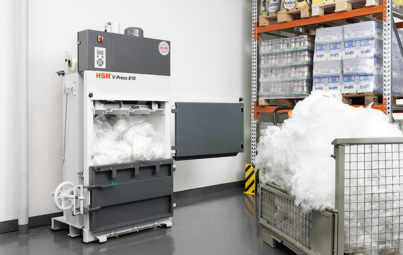

  • Doppeltüre
    To fill the press, the upper half of the doors is swung to the right
  • Rückhaltekrallen
    Special retaining claws optimize the compression of the pressing material.
  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • Display
    Convenient membrane keypad with text display, which shows the current status of the machine
  • V-Press - Handrad
    Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
  • Optimiertes Verpressen
    Massive press ram and extremely robust press plate guidance
  • V-Press - TCS
    HSM TCS (Torsion Control System) for monitoring press ram movement
  • V-Press - Umreifung Polyesterband
    Manual bale strapping with continuous polyester tape
  • V-Press - Verpresst Kartonage/Folie
    Suitable for cardboard as well as film

Products in comparison

Product attributes
HSM V-Press 504 P1
HSM V-Press 504
HSM V-Press 605 P1
HSM V-Press 605
HSM V-Press 610 P1
HSM V-Press 610
Order number: 6151151 6112164 6110174
Pressing power: 40 kN 57 kN 120 kN
Maximum bale weight: 60 kg 70 kg 100 kg
Bale size (WxHxL): 600 x 500 x 700 mm 600 x 600 x 800 mm 600 x 600 x 800 mm
Loading aperture (WxH): 700 x 470 mm 800 x 495 mm 800 x 495 mm
Number of strappings: 2 3 3
Type of consumables: strapping tape strapping tape strapping tape
Motor: 1,1 kW 1,5 kW -
Voltage / Frequency: 230 V / 50 Hz 400 V / 50 Hz 400 V / 50 Hz
Cycle time: 27 s 21 s 22 s
Dimensions of machine (WxDxH): 1020 x 812 x 1922 mm 1198 x 823 x 1986 mm 1198 x 823 x 1986 mm
Machine weight: 290 kg 485 kg 540 kg

Consumable materials

  • Verbrauchsmaterial_Umreifungsband.png
    Consumable Materials
    Strapping tape WG 40 - 12 Gigant/Dixi 15S/Dixi 16S/Dixi 18S/Dixi 6SL/V-Press 503/V-Press 504/V-Press 605/V-Press 610/V-Press 718 plus C/V-Press 818/V-Press 820/V-Press 825/V-Press 830
