Vertical balers

Product family
HSM V-Press 504

Weight
40 kN
Weight
max: 60 kg
Special Features
blocks.contact_search.dropdown_alt
  • bale removal trolley
  • Automatic bale ejection

Scroll to the desired section:

Technical data Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

The HSM V-Press 504 vertical baling press with a standard power connection enables cost-effective disposal of packaging waste while requiring minimal space. Thanks to the modern control system with illuminated display, operation is intuitive and user-friendly.

Bale removal and transport using a bale trolley

  • V-Press 503/504 - Doppeltüre
    To fill the press, the upper half of the doors is swung to the right
  • V-Press 503/504 - Kniehebel
    Bell-crank lever for quick and safe opening of the door
  • Mikroprozessor
    Modern microprocessor controller with membrane keypad and text display
  • V-Press 504 - TCS
    HSM TCS (Torsion Control System) for monitoring press ram movement
  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • V-Press - Ballenentnahmewagen 503/504
    Bale removal and transport with discharge trolley
  • Optimiertes Verpressen
    Massive press ram and extremely robust press plate guidance
  • V-Press - Umreifung Polyesterband
    Manual bale strapping with continuous polyester tape
  • V-Press - Verpresst Kartonage/Folie
    Suitable for cardboard as well as film

Products in comparison

Product attributes
HSM V-Press 503 P6
HSM V-Press 503 eco
HSM V-Press 504 P1
HSM V-Press 504
HSM V-Press 605 P1
HSM V-Press 605
Order number: 6154104 6151151 6112164
Pressing power: 30 kN 40 kN 57 kN

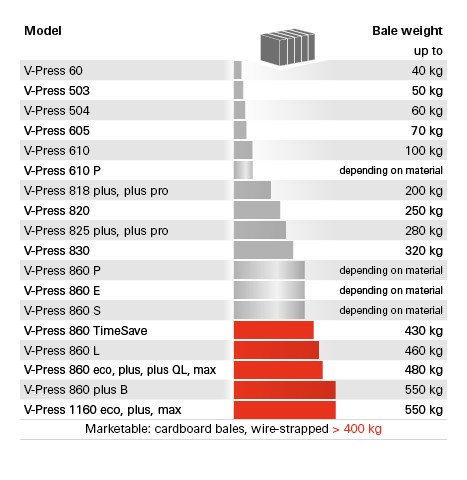

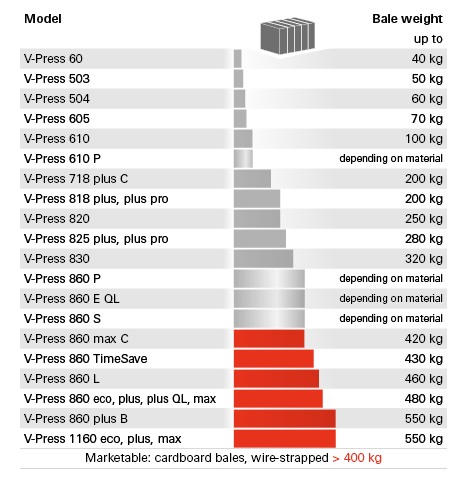

Maximum bale weight: 50 kg 60 kg 70 kg
Bale size (WxHxL): 500 x 850 x 700 mm 600 x 500 x 700 mm 600 x 600 x 800 mm
Loading aperture (WxH): 700 x 505 mm 700 x 470 mm 800 x 495 mm
Number of strappings: 2 2 3
Type of consumables: strapping tape strapping tape strapping tape
Motor: - 1,1 kW 1,5 kW
Voltage / Frequency: 230 V / 50 Hz 230 V / 50 Hz 400 V / 50 Hz
Cycle time: 30 s 27 s 21 s
Dimensions of machine (WxDxH): 953 x 679 x 1962 mm 1020 x 812 x 1922 mm 1198 x 823 x 1986 mm
Machine weight: 250 kg 290 kg 485 kg

Consumable materials

  • Verbrauchsmaterial_Umreifungsband.png
    Consumable Materials
    Strapping tape WG 40 - 12 Gigant/Dixi 15S/Dixi 16S/Dixi 18S/Dixi 6SL/V-Press 503/V-Press 504/V-Press 605/V-Press 610/V-Press 718 plus C/V-Press 818/V-Press 820/V-Press 825/V-Press 830
