Vertical balers

HSM V-Press 830 plus

  • HSM V-Press 830 P1
  • YouTube Video Thumbnail
  • HSM V-Press 830 P1
  • HSM V-Press 830 P1
    play
Vertical balers

HSM V-Press 830 plus

Weight
300 kN
Weight
max: 320 kg
Weight
B: 1100 mm H: 780 mm L: 1200 mm
Weight
B: 1717 mm T: 1247 mm H: 2570 mm
Datasheet
Request product

Scroll to the desired section:

Technical data Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

With a pressing power of 300 kN and a low overall height, the HSM V-Press 830 saves space for expensive storage areas and facilitates the transport and handling of recyclable materials.

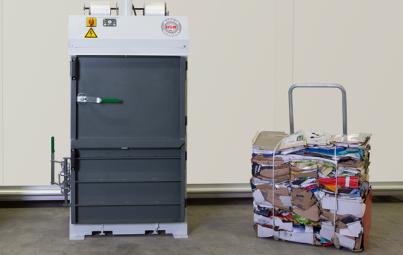

  • Geringe Fläche/Höhe
    Low installation height and small footprint
  • Schiebetüre
    To fill the press, the upper half of the doors is pushed down and automatically opens after the compression process
  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • Display
    Convenient membrane keypad with text display, which shows the current status of the machine
  • V-Press - Handrad
    Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
  • Optimiertes Verpressen
    Massive press ram and extremely robust press plate guidance
  • V-Press - TCS
    HSM TCS (Torsion Control System) for monitoring press ram movement
  • Umreifung Draht oder Band
    Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements
  • V-Press - Verpresst Kartonage/Folie
    Suitable for cardboard as well as film

Products in comparison

Product attributes
HSM V-Press 825 plus P1
HSM V-Press 825 plus
HSM V-Press 830 P1
HSM V-Press 830 plus
HSM V Press 860 plus
HSM V-Press 860 plus
Order number: 6052414 6056214 6048204
Pressing power: 250 kN 300 kN 594 kN
Maximum bale weight: 280 kg 320 kg 480 kg
Bale size (WxHxL): 700 x 780 x 1200 mm 1100 x 780 x 1200 mm 1200 x 780 x 1200 mm
Loading aperture (WxH): 1195 x 530 mm 1195 x 530 mm 1195 x 645 mm
Number of strappings: 4 4 4
Type of consumables: strapping tape pre-looped wire pre-looped wire
Motor: - 4 kW 4 kW
Voltage / Frequency: 400 V / 50 Hz 400 V / 50 Hz 400 V / 50 Hz
Cycle time: 39 s 47.5 s 25 s
Dimensions of machine (WxDxH): 1705 x 1050 x 2385 mm 1717 x 1247 x 2570 mm 1800 x 1253 x 2990 mm
Machine weight: 1117 kg 1445 kg 2213 kg

Consumable materials

  • Consumable Materials
    Pre-looped wire 2,80x3700 - V-Press 840/V-Press 860/V-Press 860 S/P/V-Press 860 max C/VL 225/VL 500
