Product highlights

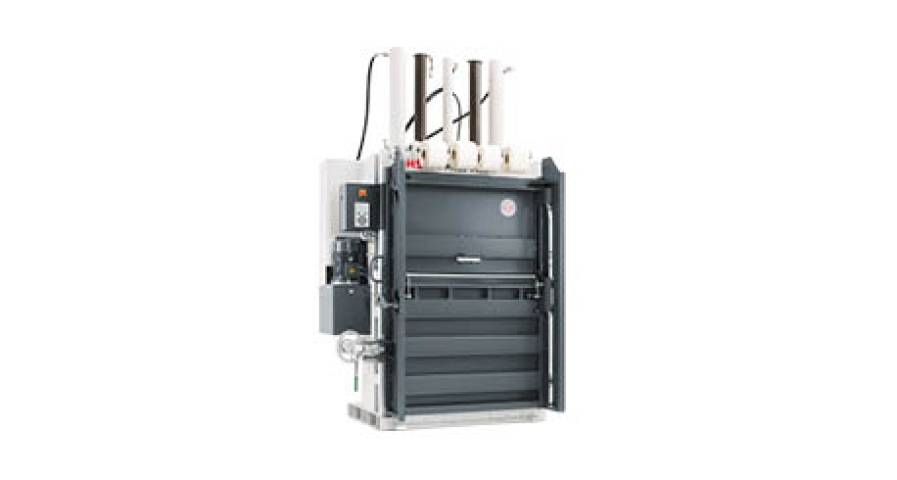

Used Electro-hydraulic baling press model HSM 1160 plus
with sliding door with hydraulic door lock
with covers for sliding door, bale ejection door and wire device back
incl. operating manual and declaration of conformity
- article 6144894G05494
- year of manufacture 2020
- wire sstrapping
- rapid traverse
Technical details
- Dimensions W 1780 x D 1568 x H 2990 mm
- Weight approx. 2486 kg
- Motor 4,0 kW
- Voltage / Frequency 3 x 400 V / 50 Hz
- Pressing power 594 kN
- Cycle time in idle operation 25 sec.
- Hourly output approx. 1 - 2 bales
- Bale weight approx. 400-550 kg (depending on material)
- Max. bale size L 1200 x W 1100 x H 1000-1200 mm
- Keypad with selectable program for cardboard
and foil and graphic capable display of respective current
status, bale counter and working hour meter - Auto-start and stop when door is opened or closed
- TorsionControlSystem (TCS)
- Semi-automatic 4-fold strapping with eyelet wire
- Basic equipment: 2 coils wire 2.8x4400mm
You need the following electrical connection:
CEE-plug 3x16 A+N+PE6h, fuse protection 16 A,
circuit breaker trait K or C
technical and optical modifications reserved
product image is an example image
delivery time: on demand
