Product highlights
Used Fully Automatic Electro-Hydraulic
Horizontal Baling Press HSM VK 4812 P
- Article 6450P04419G05282
- Year of Manufacture: 2018
Technical Data
- Main drive power: 15 kW
- Motor efficiency class: IE3 according to IEC 60034/30
- Total connected load: depending on optional equipment
- Voltage / Frequency: 3 x 400 V / 50 Hz + N + PE
- Pressing force: 480 kN
- Specific pressing force: 58 N/cm²
- Pump capacity: 102 l/min
- Oil tank capacity: 300 l
- Feed opening (W x L): 1,020 x 1,250 mm
- Bale channel cross-section (W x H): 1,100 x 750 mm
- Bale length, adjustable in 4 steps: 600 - 1,200 mm
- Bale weight at 1,200 mm bale length: approx. 300 - 550 kg
- Standardized bale density: approx. 300 - 550 kg/m³ (depending
on material) - Cycle time (ram forward and return, idle): approx. 24.5 sec
- Theoretical throughput: 151 m³/h
- Theoretical throughput at bulk density:
20 kg/m³: approx. 3.02 t/h
50 kg/m³: approx. 7.55 t/h
Technical Description HSM VK 4812 P
- Special feed chute (""""snout"""" design) for manual rear loading
- Through-feed cylinders positioned on the left side (viewed in
pressing direction) - Control cabinet mounted on the left side of the feed chute at
the end of the platform - Fully automatic compaction process
- Fully automatic horizontal 4-wire tying system using patented
coiled wire - Automatic press cycle control via photoelectric sensor
- 2,450 mm tapered press channel
- Hydraulic adjustment of channel taper according to material
type - Siemens S7-1200 PLC with text display and diagnostic memory
- Plain-text display of important operating conditions
- Integrated bale counter
- Operating hour counter
- Hardox wear plates in high-wear areas of the press chamber
floor - Special side sealing system on both sides for demanding
applications (e.g. PET) - Additional welded wear plates in the base section of the press
channel - Wire slot protection covers preventing contamination of the
wire channels - Retention system with 6 brake wedges in the press channel
floor and roof to increase material friction - Compact cascade-type design at the rear of the baler
- Standard paint finish:
Press: RAL 7011 (Iron Grey)
Cylinders, motor, control cabinet: RAL 9002 (Grey White) - Basic machine weight (without options): approx. 9.5 - 10 t
- Technical documentation included (3 copies, German)
- GS safety certification and CE Declaration of Conformity
included
Included Optional Equipment
- Oil cooler, cooling capacity 9 kW
For continuous operation with high utilization rates or high
ambient temperatures
Cooler motor power: 1.5 kW - Control cabinet heater
For installation in unheated buildings or outdoor covered
areas
Recommended for temperatures below 10°C - Oil tank heater
For installation in unheated buildings or outdoor covered
areas
Recommended for temperatures below 4°C - Automatic press shutdown when """"wire end"""" signal is detected
- Special wire station for 250 kg / 500 kg wire coils
Installed separately next to the press
Includes wire feed system to the baler - Initial wire package:
8 coils, each 250 kg
Wire diameter: 3.8 mm - Bale discharge chute
Length approx. 3,300 mm
For compensating height differences between press channel
and floor level - Special feed chute (""""snout"""")
For manual loading from an existing platform - Remote operator panel
Includes operating functions and text display
Cabling and cable trays included
Installation distance up to 10 m from the press - Visual warning system
2 beacon lights (1 red, 1 blue)
Mounted on the control cabinet
For fault and cleaning cycle indication - Remote maintenance system
For external diagnostics and troubleshooting - Manual centralized lubrication system
Progressive grease distributor for the press ram
technical and optical modifications reserved

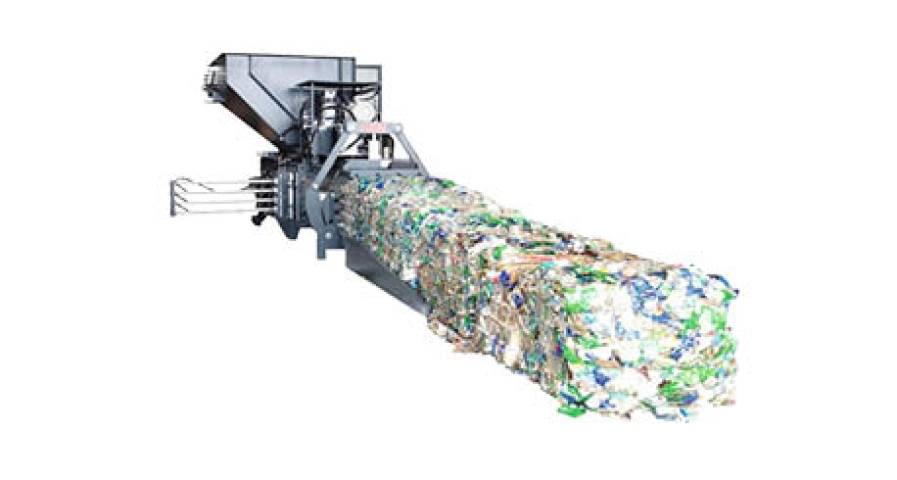

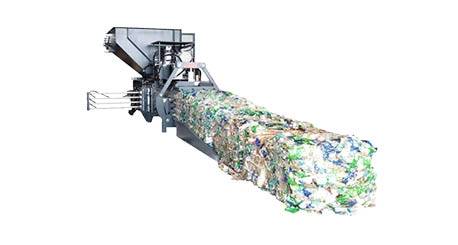

product image is an example image
delivery time: on demand
Modifications and errors reserved
