Horizontal balers

Product family
HSM HL 4814

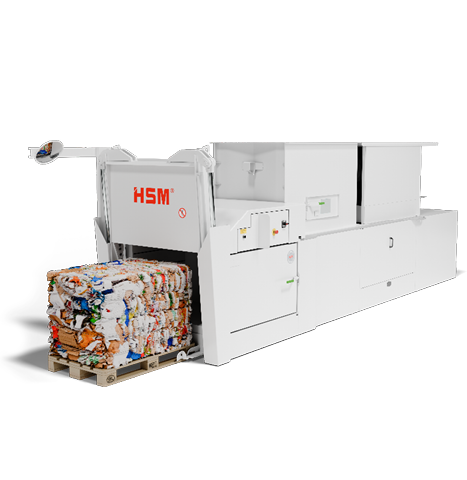

  • HL_4814_Produktbild_2.png
  • HL_4814_Produktbild_2.png
Horizontal balers

Product family
HSM HL 4814

Weight
480 kN
Weight
max: 420 kg
Method of loading
blocks.contact_search.dropdown_alt
  • conveyor belt|bevelled hopper

Scroll to the desired section:

Technical data Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

The HSM HL 4814 has been designed with an operating concept and technical features in mind to make it the optimum machine for food retailers and small central storage facilities. It can be fed manually or via conveyor. Bale ejection is handled by the machine efficiently and safely with minimum operator effort. All in all a sophisticated solution for small to medium quantities at a great price-performance ratio and high automation level.

  • Very low space requirement thanks to compact and sturdy design
  • HSM_HL4812_Umreifung.jpg
    Manual bale strapping with wire
  • Also available as a variant with automatic start
  • HSM_HL_Ballen_fertig.jpg
    Automatic information as soon as enough material for a bale has been compressed and the bale can be tied
  • HSM_HL_Display.jpg
    Intuitive, multilingual operational guidance via graphic description
  • HSM_HL_Hydraulische_Schiebetuer.jpg
    Hydraulic sliding door for bale removal ensures optimum operating convenience and safety
  • HL - Kartonage und Folie
    Suitable for cardboard as well as film
  • Suitable for continuous loading with conveyor belt or similar

Products in comparison

Product attributes
HSM HL 4809 ST
HSM HL 4814
Order number: 6423304 6431001
Pressing power: 480 kN 480 kN
Maximum bale weight: 420 kg 420 kg
Dimensions of machine (WxDxH): 5926 x 1978 x 2042 mm 6985 x 1810 x 2123 mm
Loading aperture (WxH): 1020 x 900 mm 1020 x 1400 mm

Consumable materials

  • Produktbild_Verbrauchsmaterial_Quick-Link-Draht.png
    Consumable Materials
    Quicklink-wire 2,45x4400 - HL 4809 ST/HL 7009
    Learn more
