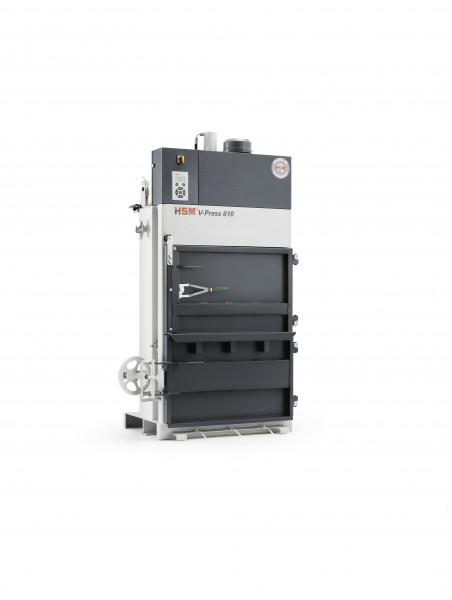

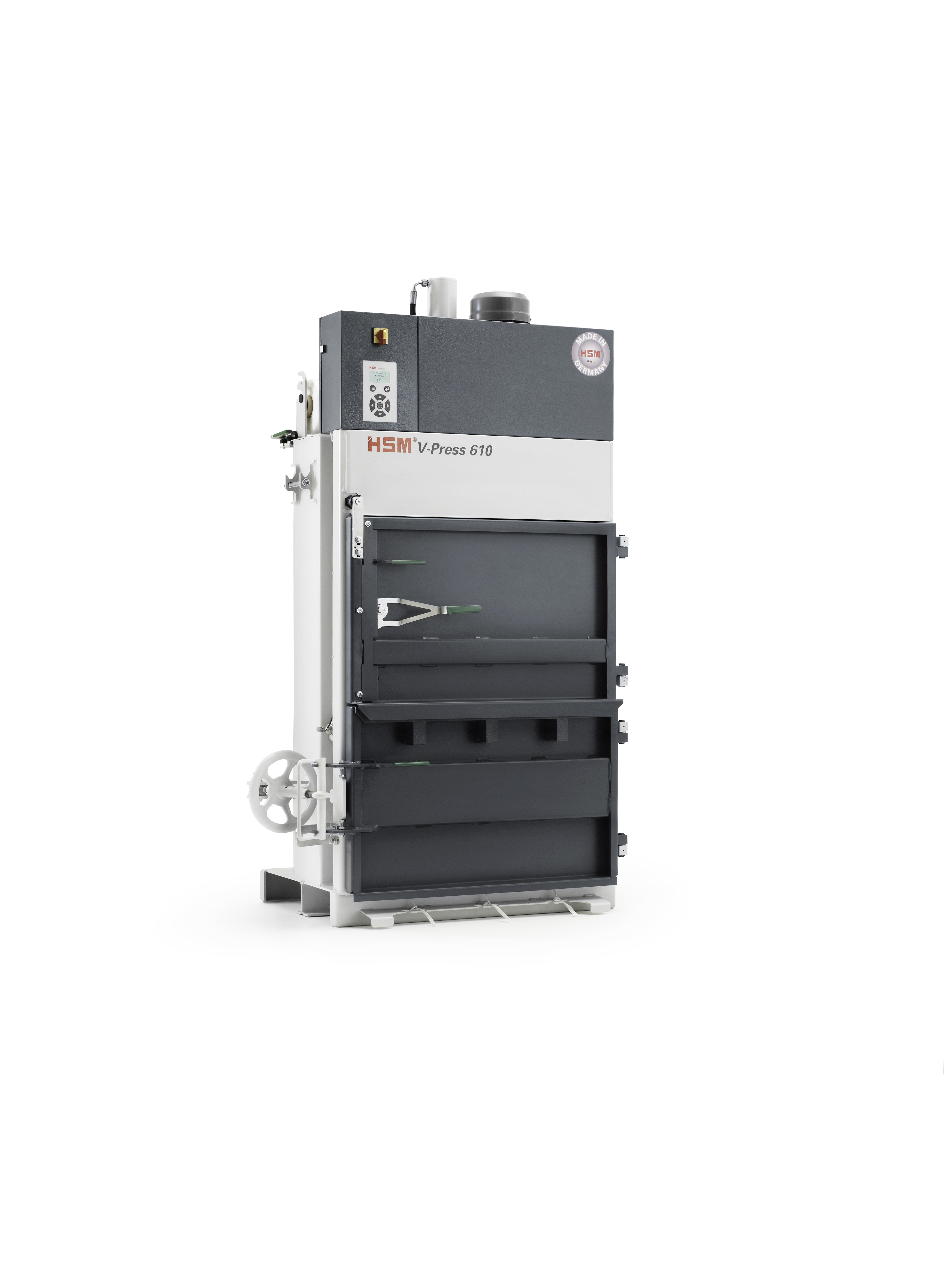

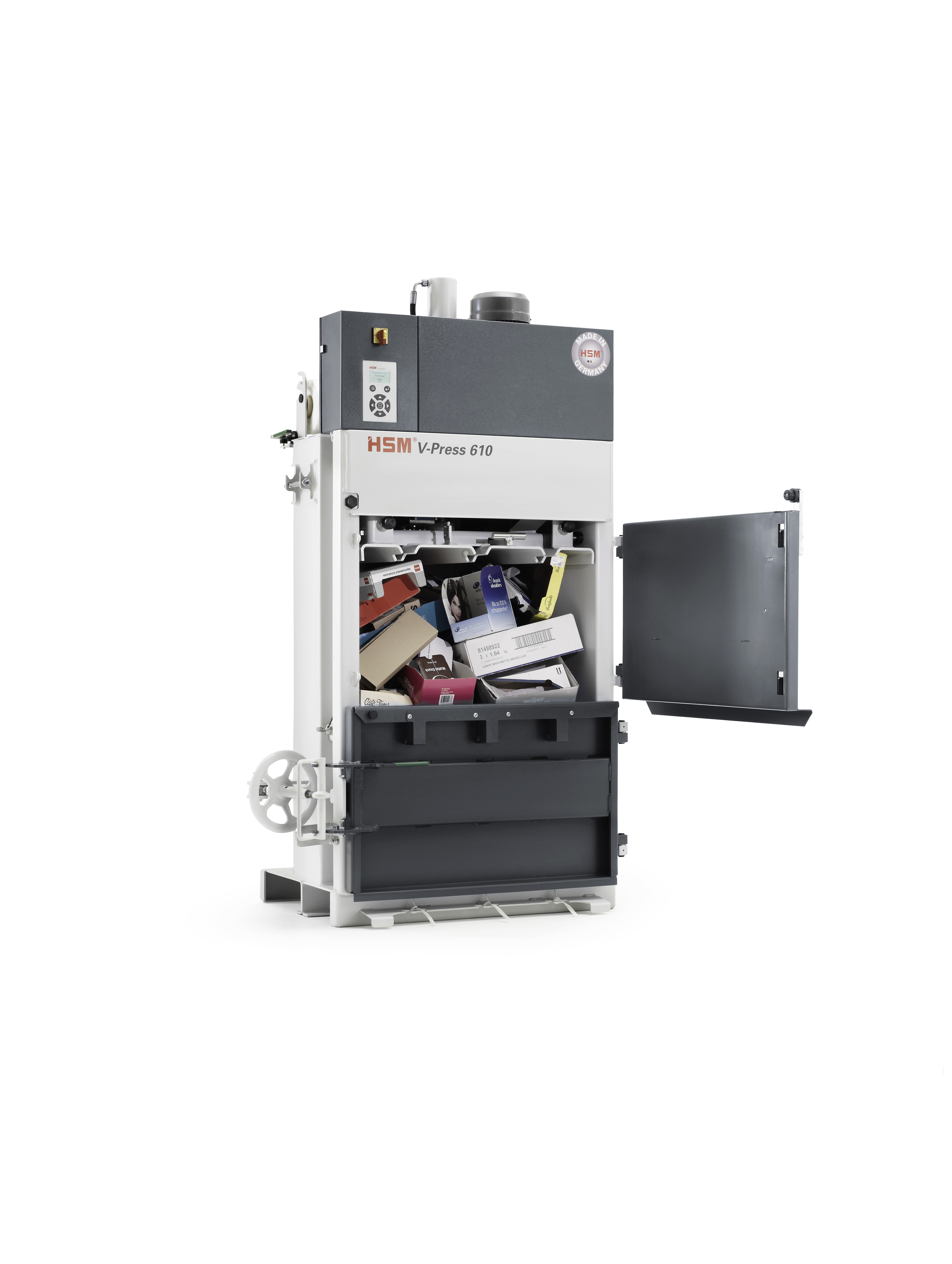

used Vertical baling press HSM V-Press 610
Door configuration: double door
Door lock: handwheel
incl. operating manual and declaration of conformity

- year of construction 2022
- tape strapping

Technical details:
- Driving power: 3 KW
- Voltage: 3PHPE 400 V / 50 Hz
- Pressing power: 120 kN
- theor. cycle time: 22 s
- Bale weight: up to 100 kg (depending on material)
- Max. bale size LxWxH max.: 800 x 600 x 600 mm
- Dimensions WxDxH: 1.198 x 823 x 1.986 mm
- Bale weight approx.: 540 kg
- Bale counter, Graphic-capable display, Keypad,
actual state display, auto start-stop function,
automatic bale ejection, cardboardand film programme,
right-hinged doors, torsion control system (TCS),
working hour meter
- Semi-automatic 3fold strapping with polyester tape
- Basic equipment: 3 rol WG40

You require the following power connection :
Connector type CEE 5x16A/400V/6H
fuse protection 3x16 A, fuse protection C, GL, K

technical and optical modifications reserved
product image is an example image

delivery time: on demand

Modifications and errors reserved
