Punti di forza del prodotto

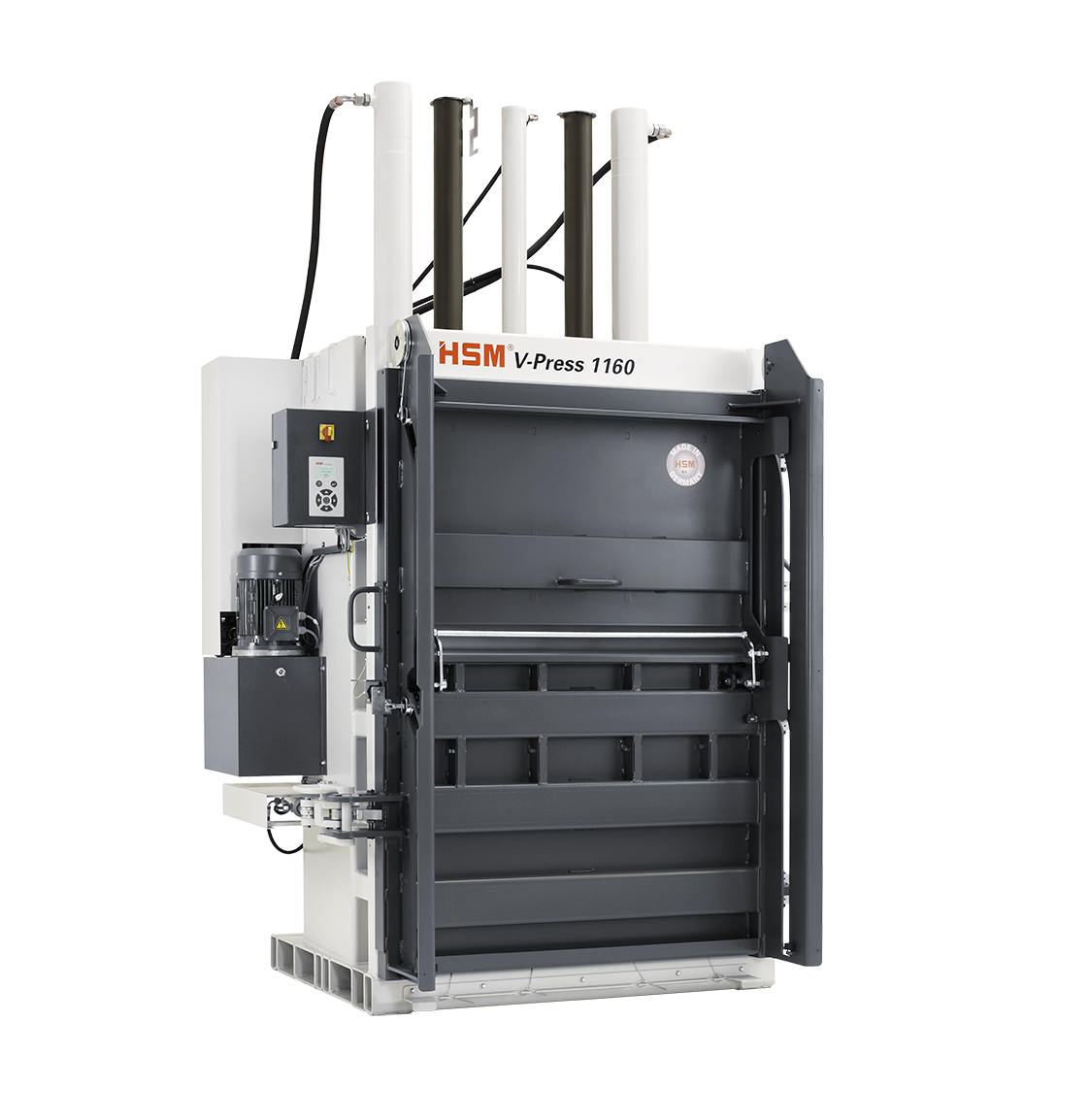

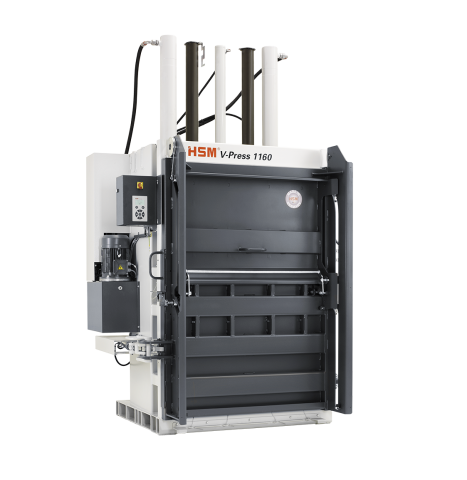

Used electro-hydraulic baling press model HSM V-Press 1160 max
incl. operating manual and declaration of conformity
- article: 6144375G05184
- year of construction: 2015
- wire strapping
Technical details
- Motor 4,0 kW
- Voltage / Frequency 3 x 400 V / 50 Hz
- Pressing power 548 kN
- Cycle time in idle operation 25 sec.
- Hourly output approx. 1 - 2 bales
- Bale weight approx. 400-550 kg (depending on material)
- Max. bale size L 1200 x W 1100 x H 1000-1200 mm
- Dimensions W 1780 x D 1568 x H 2990 mm
- Keypad with selectable program for cardboard and foil and graphic capable display of respective current status, bale counter and working hour meter
- Auto-start and stop when sliding door is opened or closed
- TorsionControlSystem (TCS)
- Semi-automatic 4-fold strapping with continous polyester tape or eyelet wire
- Basic equipment: 2 coils wire 2.8x4400mm
You need the following electrical connection:
CEE-plug 3x16 A+N+PE6h, fuse protection 16 A,
circuit breaker trait K or C
Technical and optical modifications reserved
Product image is an example image
Delivery time: ready for dispatch
Technical and design modifications reserved
