used Baling press model HSM V-Press 860 L
incl. operating instruction and declaration of confirmity
- Double door with hydraulic door lock
- with opening in the bale for transportation of the bale
without a pallet

- year of construction 2014
- wire strapping

Technical details:
- Motor 7.5 kW
- Voltage / Frequency 3 x 400 V / 50 Hz
- Pressing power 532 kN
- Hourly output approx. 1 - 2 bales
- Bale weight approx. 370 - 460 kg (depending on material)
- Max. bale size L 1200 x W 780 x H 1000-1200 mm
- Dimensions W 1785 x D 1035 x H 2990 mm
- Weight approx. 1.920 kg
- Keypad with selectable program for cardboard
and foil and display of respective current status,
bale counter and working hour meter
- Auto-start and stop when door is opened or closed
- TorsionControlSystem (TCS)
- Semi-automatic 4-fold strapping with eyelet wire or
optional with endless polyester tape
- Basic equipment: 2 coils wire 2.8x3700mm


You need the following electrical connection:
CEE-plug 3x32 A+N+PE6h, fuse protection 25 A,
circuit breaker trait K or C, or fuses trait gl

technical and optical modifications reserved

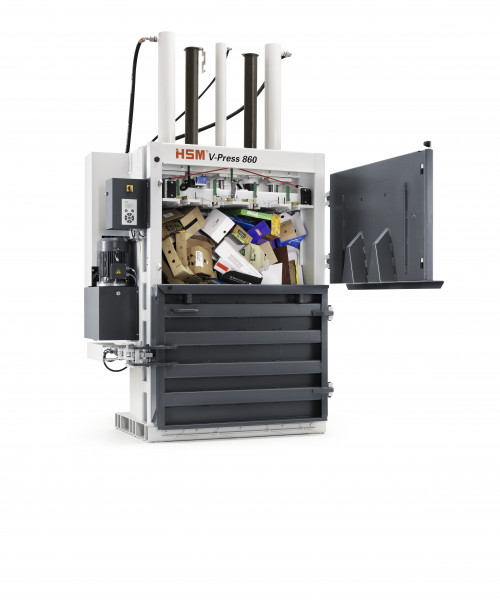

product image is an example image

delivery time: on demand

Modifications and errors reserved
