HSM V-Press 860 S

HSM V-Press 860 S

HSM V-Press 860 S vertical baling press The model HSM V-Press 860 S is the perfect machine for... more

HSM V-Press 860 S vertical baling press

The model HSM V-Press 860 S is the perfect machine for the volume reduction of stiff plastics (e.g. monitor and TV set housings) and expanding plastic film (other materials upon request).

V-Press 860P/S -Verstärkter Presskasten
Reinforced press chamber and hydraulic door lock - Convenient opening and closing, no manual effort required

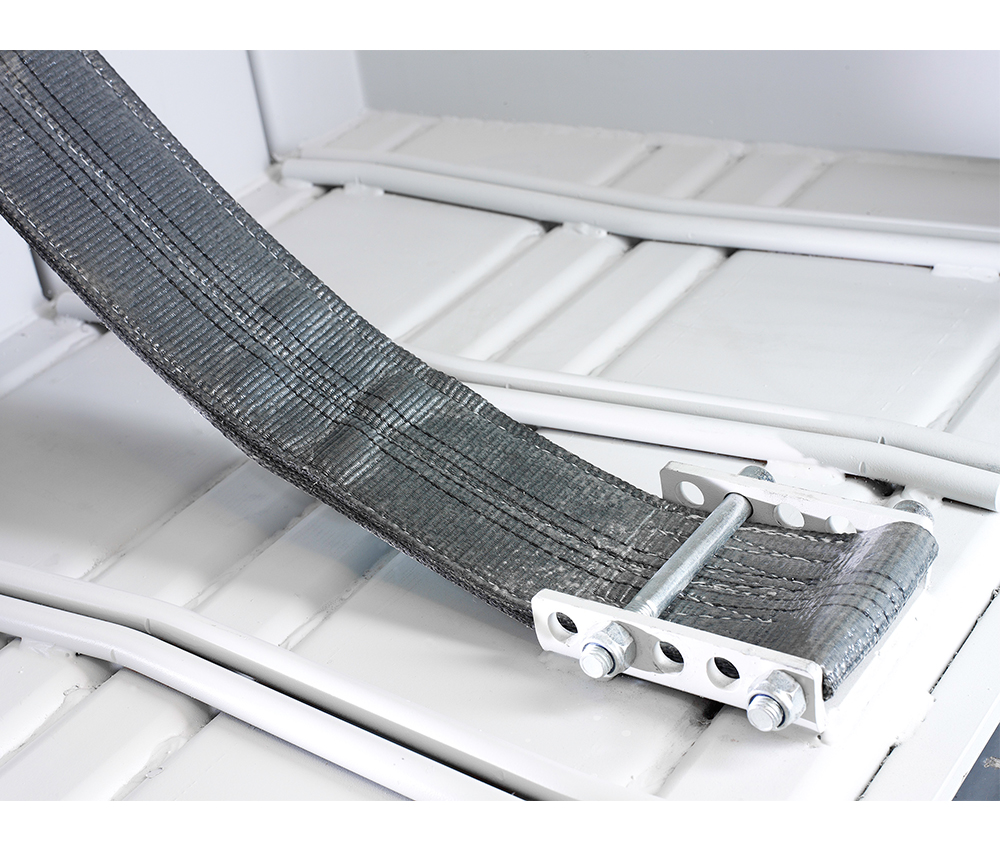

V-Press - Gurtauswerfer
Robust mechanical bale ejector chain
V-Press - Rückhaltekrallen doppelt
Double quantity of retaining claws optimize the compression of the pressing material and reduce the number of loading actions
V-Press - Eilgang
The HSM V-Presses are highly energy efficient thanks to the rapid stroke technology. This saves time and money
V-Press - Automatikstart
Automatic start of the pressing process after closing the door
V-Press - Optimiertes Verpressen
Massive press ram and extremely robust press plate guidance
V-Press - Display
Convenient membrane keypad with text display, which shows the current status of the machine
V-Press - TCS
HSM TCS (Torsion Control System) for monitoring press ram movement
V-Press - Umreifung Draht Hartkunststoff
Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements
Technical data "HSM V-Press 860 S"
Order number: 6148854
EAN: 4026631056618
Pressing power: 434 kN
Specific pressing power: 46,37 N/cm²
Driving power: 4 kW
Voltage / Frequency: 400 V / 50 Hz
Cycle time when idling: 25 s
Volume throughput in idle operation (theor.): 12 m³/h
Loading height: 1110 mm
Loading aperture width x height: 1195 x 650 mm
Bale length x Bale width x Bale height: 1200 x 780 x 1200 mm
Bale weight (up to): 230 kg
Width x Depth x Height: 1868 x 1076 x 2985 mm
Weight: 2285 kg
Type of consumables: Wire
Press material: Polystyrene, HDPE / LDPE hollow containers & plastic bottles, Clothing, Punch waste/residue, Big Bags, Cardboard, Mixed paper, Plastic film, PET
