HSM V-Press 503

HSM V-Press 503

HSM V-Press 503 vertical baling press Easy installation and operation make the HSM V-press 503... more

HSM V-Press 503 vertical baling press

Easy installation and operation make the HSM V-press 503 as the ideal model for small material volumes.

To fill the press, the upper half of the doors is swung to the right
V-Press 503/504 - Doppeltüre
Bell-crank lever for quick and safe opening of the door
V-Press 503/504 - Kniehebel
Bale removal and transport with discharge trolley
V-Press - Ballenentnahmewagen 503/504
Automatic start of the pressing process after closing the door
V-Press - Automatikstart

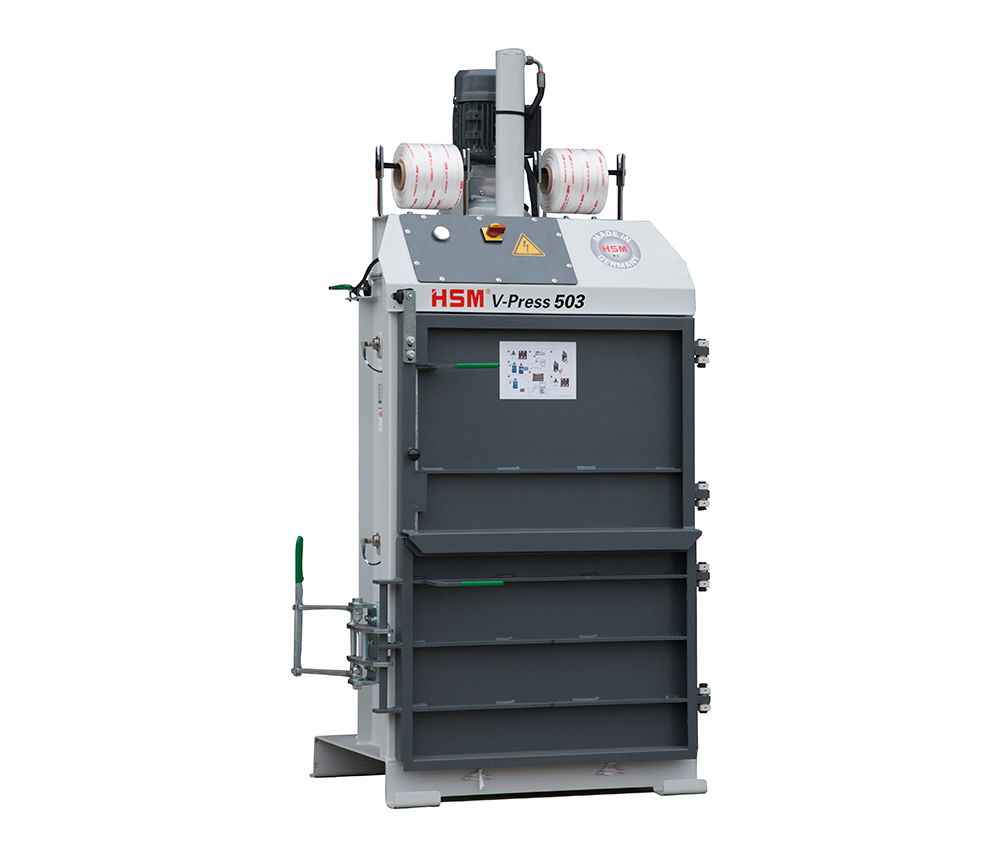

Low installation height and small footprint
V-Press 503 - Geringe Fläche/Höhe
Suitable for cardboard as well as film
V-Press - Verpresst Kartonage/Folie
Bale strapping with polyester tape
V-Press - Umreifung Polyesterband
Technical data "HSM V-Press 503"
Order number: 6153111
EAN 4026631052313
Pressing power: 30 kN
Specific pressing power: 8.4 N/cm²
Driving power: 1,1 kW
Voltage / Frequency: 230 V / 50 Hz
Cycle time when idling vacío: 27 s
Loading height: 661 mm
Volume throughput at 20kg/m³ (theor.): 0,03 t/h
Loading aperture width x height: 700 x 470 mm
Bale weight: 50 Kg
Width x Depth x Height: 1020 x 812 x 1922 mm
Weight: 330 kg
Method of strapping: vertical
Number of strappings: 2
Type of consumables: Strapping tape
Industry type: Print & Packaging, Logistics & Distribution, Retail, Industry & Manufacturing
Press material: Mixed paper, Cardboard, Plastic film
Use for product line: V-Press
