HSM VK 1206

HSM VK 1206

Channel baling press HSM VK 2310 For industrial applications with small material loads -... more

Channel baling press HSM VK 2310

For industrial applications with small material loads - Troughput up to approx. 99 m³/h

VK - Kartonage, Folie, PET
Particularly suitable for cardboard, plastic film and PET bottles
VK - Option manuelle Umreifung
Available as an option with manual strapping
VK 1210 - Luftbeschickung
Optimal for connecting to air feeding systems (fast cycle times)
VK - Integration Fertigung
Integration into automated industrial production processes
VK 3008 - kontinuierliche Beschickung
Suitable for continuous loading with conveyor belt, air feeding or similar

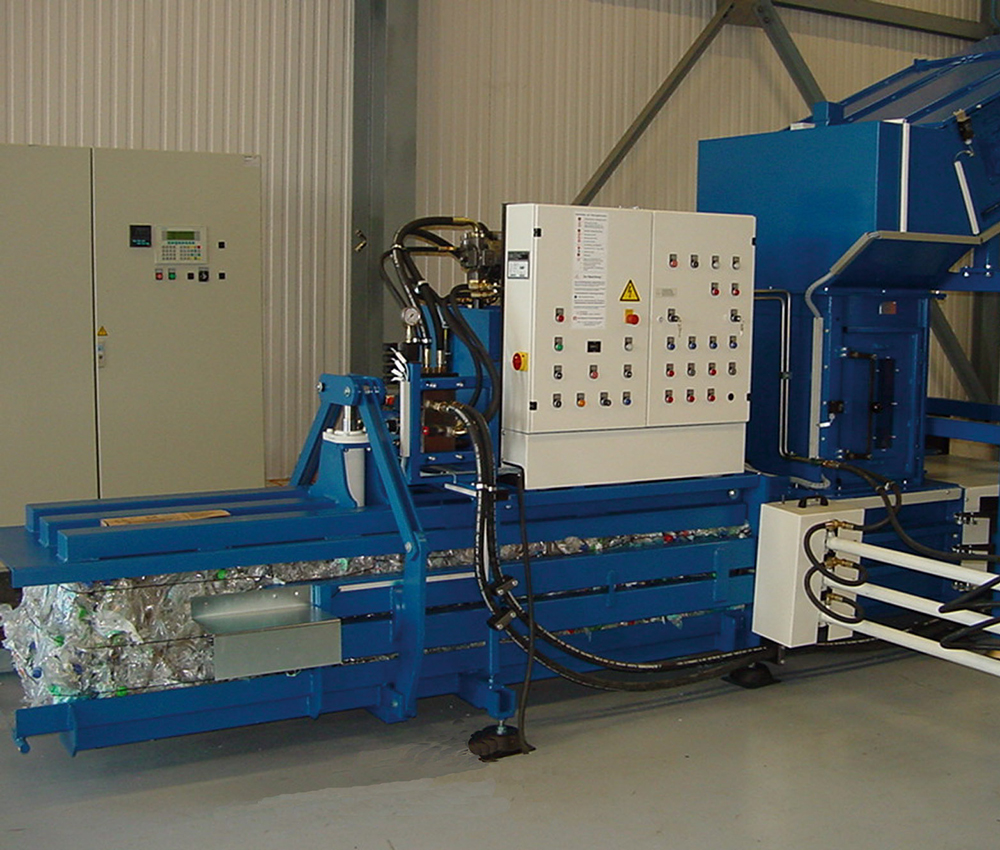

AK/VK 807 - Kompakte Ballenabmessungen
The bales can be stacked and are easy to transport
VK - Lichtschranke
Control of the pressing process via light barrier

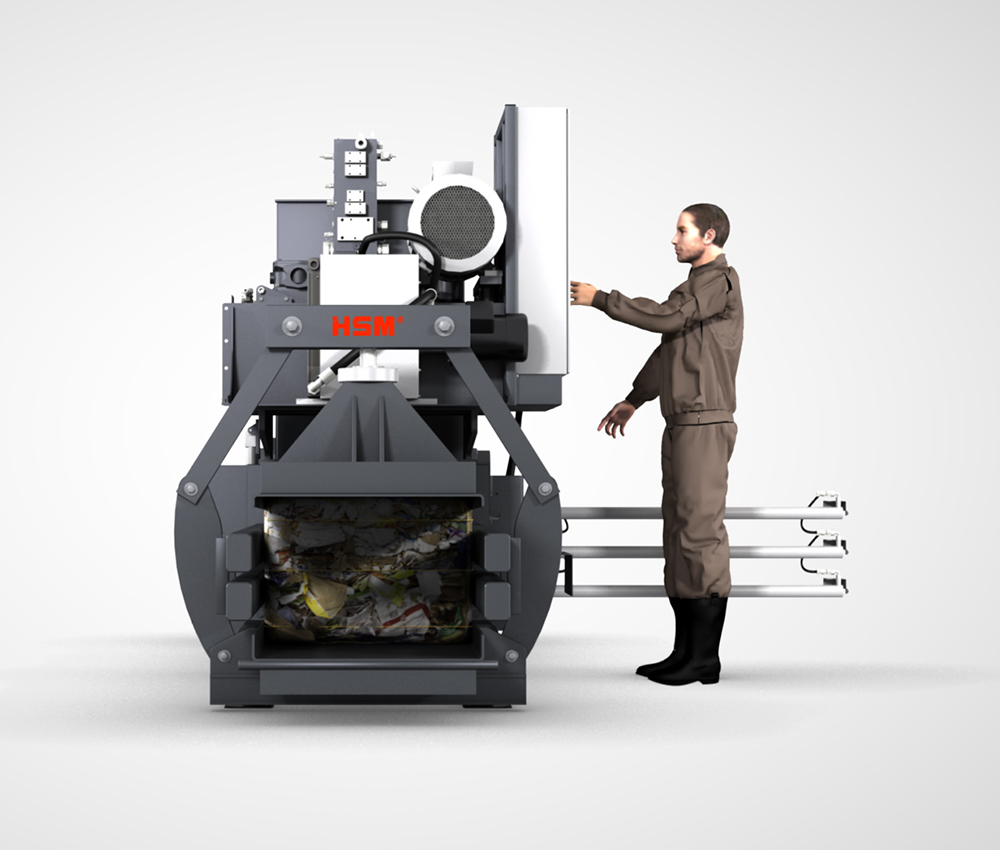

VK 807 V - Bedienseite
Operating side can be selected
VK 807 V - kompakte Bauweise
Very low space requirement thanks to compact and sturdy design
Technical data "HSM VK 1206"
Order number: 6618001
Pressing power: 159 kN
Specific pressing power: 42,4 N/cm²
Driving power: 9,2 kW
Voltage / Frequency: 400 V / 50 Hz
Cycle time when idling vacío: 8,2 s
Volume throughput in idle operation (theor.): 99 m³/h
Volume throughput at 50kg/m³ (theor.): 4.95 t/h
Loading aperture width x Loading aperture length: 670 x 600 mm
Bale width x Bale height x Bale length: 750 x 500 x 600-1200 mm
Length x Width x Height: 4795 x 2863 x 1565 mm
Weight: 3,4 t
Type of consumables: Wire
Press material: Plastic film, Mixed paper, Cardboard, Punch waste/residue, PET beverage and aluminium cans, soft packaging, PET
